Sensors
"Track performance in renewables & help to optimize"
![Solar-irradition-Sensor](https://suryalogix.com/wp-content/uploads/2024/04/Solar-irraditiob-Sensor.webp)

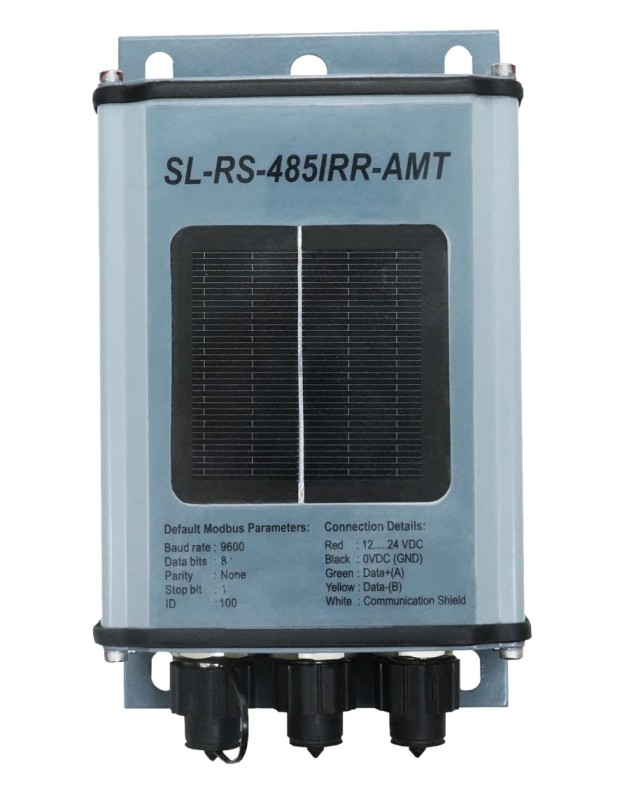

Solar Irradiation Sensors
- Used to Measure Solar Radiation Flux Density.
- Available in both Analog and Digital Output.
- Housing / Enclosure: UV-Resistant PVC Plastic.
- Ingress Protection (IP): IP65 Reading helps in Calculating the Performance Ratio of the Plant.
![](https://suryalogix.com/wp-content/uploads/2024/03/Sensor04-scaled.webp)

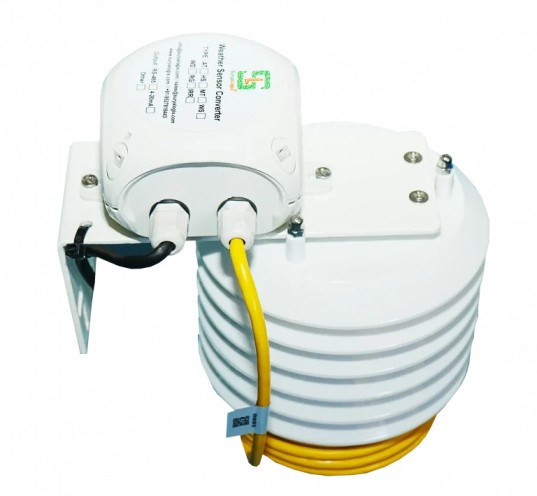

Ambient Temperature Sensor
- Used to Measure the Surrounding Temperature
- Housing / Enclosure: PolyCarbonate Watertight Enclosure
- Sensor Type: Pt100Ω Class A IEC 60751 Both Digital and Analog Output is Available .
![Module-temprature-Sensor-Image](https://suryalogix.com/wp-content/uploads/2024/04/07-removebg-preview.webp)

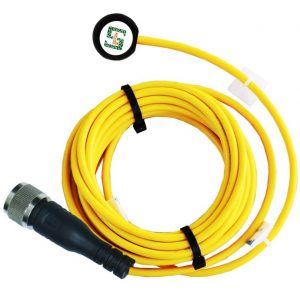

Module Temperature Sensor
- Specifically used to Measure Module Temperature Sensor
- Output Available in Both Analog and Digital
- Reading helps in Calculating the Performance Ratio of the Plant
- Supply Voltage: 12 to 28VDC
![](https://suryalogix.com/wp-content/uploads/2024/03/Wind-Speed-Sensor-scaled.webp)

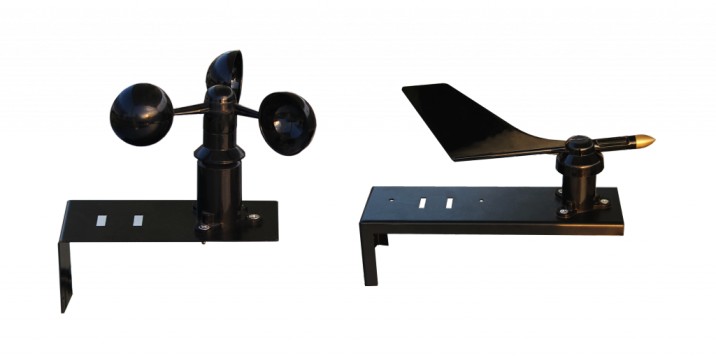

Wind Direction Sensor
- Used to measure Wind Speed & Direction
- Anemometer includes both Wind Speed and Wind Direction Sensors
- Cup & Vane type Measuring Device
- Provides a Critical Parameter to consider from the Plant Safety Perspective
![](https://suryalogix.com/wp-content/uploads/2024/07/Albedometer1-768x600.webp)
Ambient Temperature & Humidity Sensor
- Used to Measure and Monitor the amount of Moisture in the Surrounding Atmosphere
- Sensors include Temperature and Humidity Sensors with the Shield.
- Provides the actual Humidity Condition with Ambient Temperature
- Digital and Analog Outputs are Available
![Pyranometer](https://suryalogix.com/wp-content/uploads/2024/04/Pyranometer.webp)
Pyranometer
- Used to Measure independent, Accurate Readings of the Total available Solar Radiation
- Digital and Analog Outputs are available
- Faster Responsivity
- Monitor the wide solar spectrum with increased accuracy
![](https://suryalogix.com/wp-content/uploads/2024/06/Solling-station.webp)

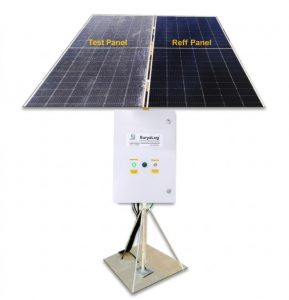

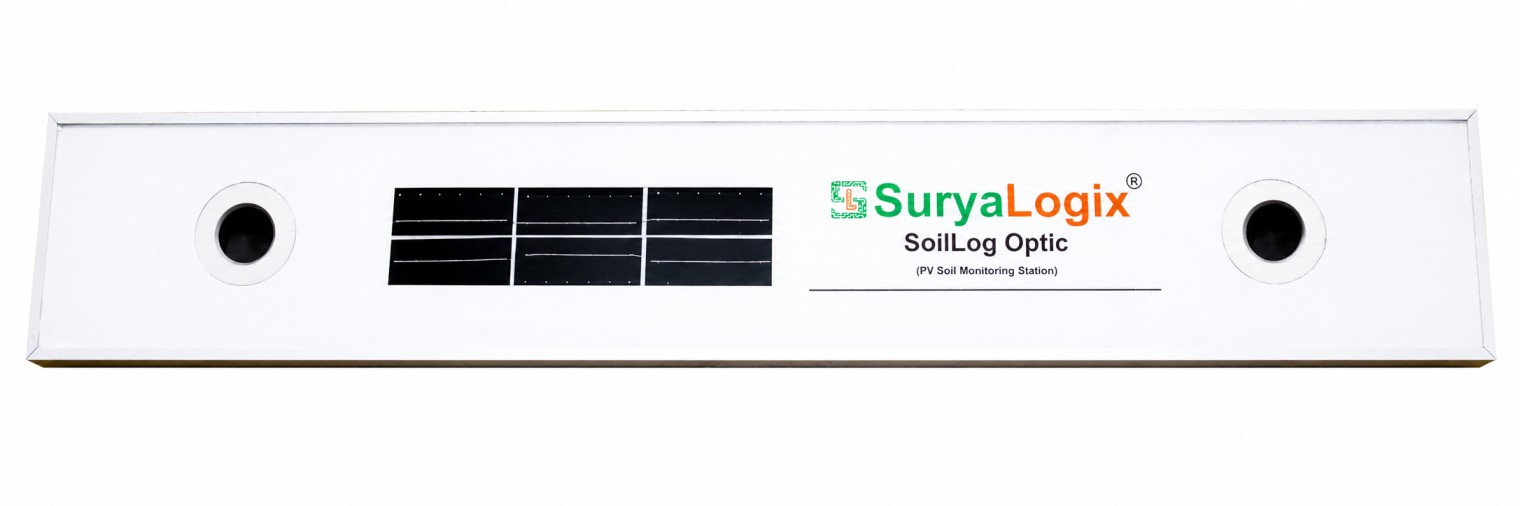

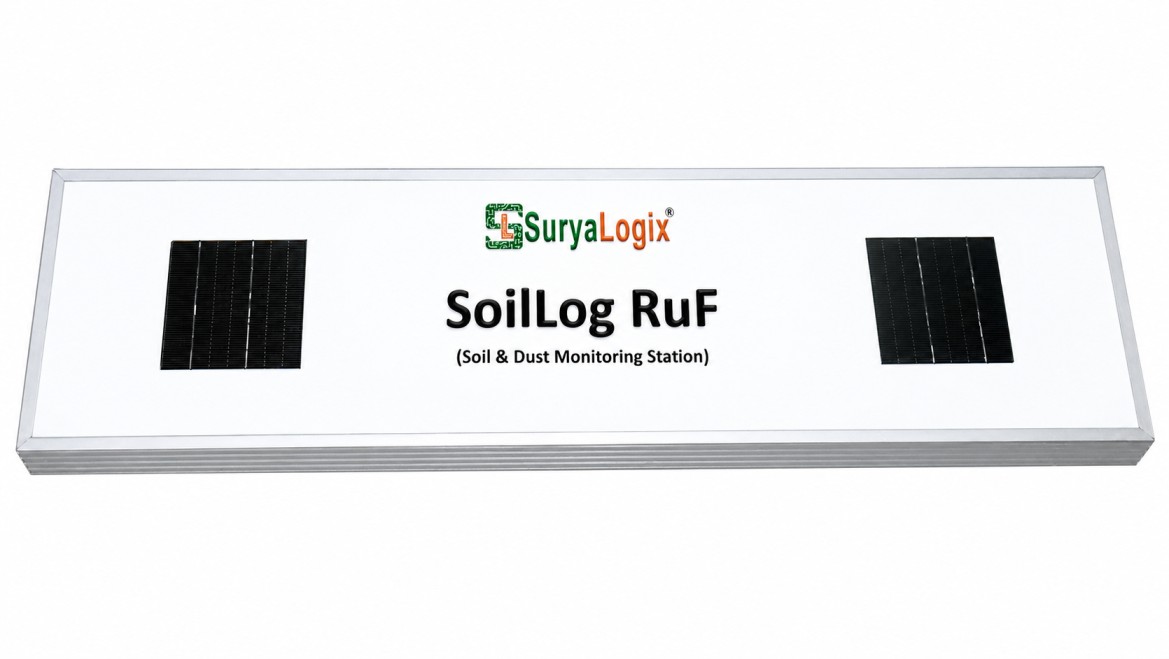

Soiling Station
- IEC 61725 Compliance.
- Manual Cleaning of PV Modules.
- Real time Soiling Loss.
- Short circuit and MPP (optional ) method compliant.
- Temperature corrected calculation methods.
- Assures data quality by real- time filtering to maximize accuracy.
![](https://suryalogix.com/wp-content/uploads/2024/06/Sensors.webp)
Monoficial + Bificial Module & Ambient
- Sensor Accuracy : Up to ± 0.1°C.
- Measuring temperature range 0 to 1000 °C.
- Output-4-20 mA/0-10 VDC/RS -485.
- Shield Based Ambient temperature Sensor.
![](https://suryalogix.com/wp-content/uploads/2024/06/DHI-DNI.webp)

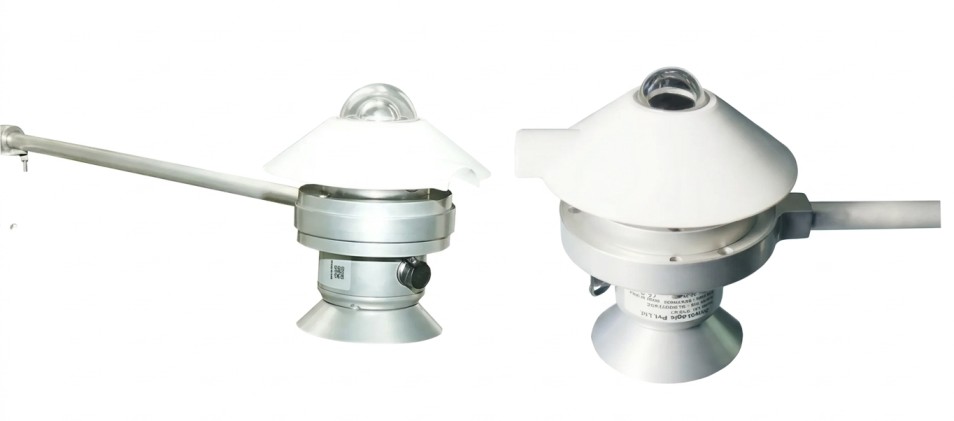

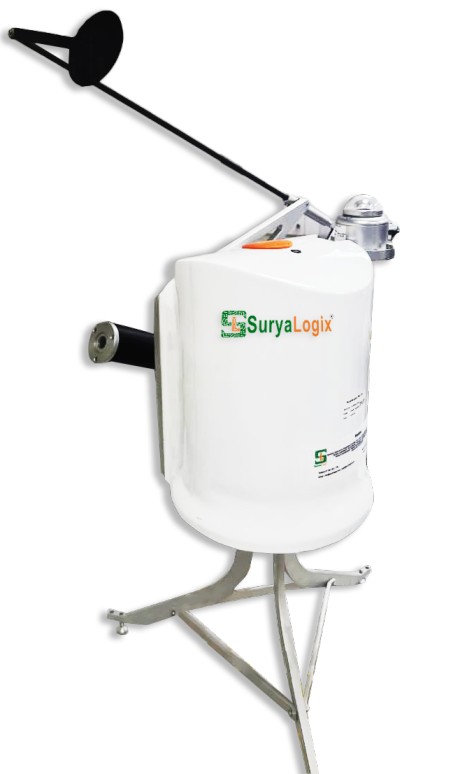

DHI & DNI
- Direct Radiation detect by Sun.
- Shadow Ring to avoid direct Sun rays.
- Sunrise time, Sunset time Calculation.
![](https://suryalogix.com/wp-content/uploads/2024/06/Photodiode-Pyranometer.webp)

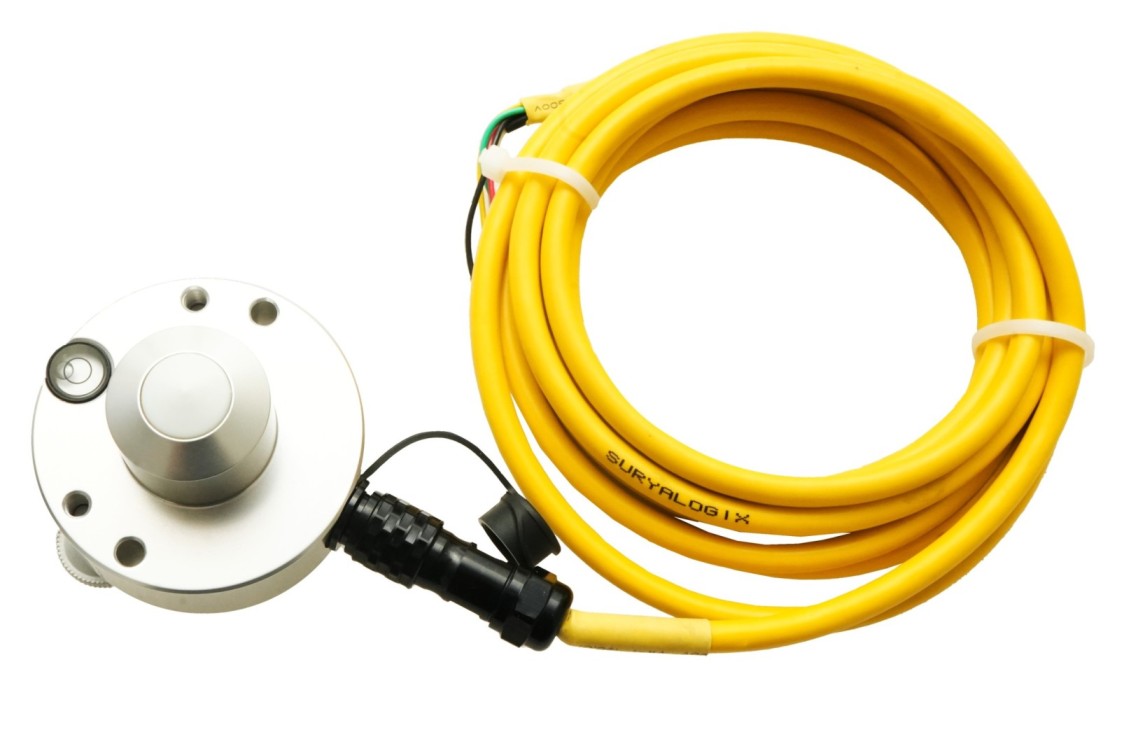

Photodiode Pyranometer
- Used to measure independent, accurate readings of the total available solar radiation.
- Digital and Analog outputs are available Faster responsivity .
- Monitor the wide solar spectrum with increased accuracy
![](https://suryalogix.com/wp-content/uploads/2024/06/Thermopile-Pyranometer-–-Type-2.webp)

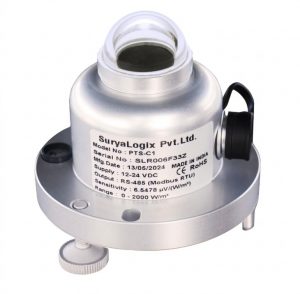

Thermopile Pyranometer
Type 2
- Used to measure the broad band of the solar radiation flux density from a 180 degree field of view.
- Better response time.
- Digital and Analog outputs are available.
- Class type: Class-C (type 2) Class-B
![](https://suryalogix.com/wp-content/uploads/2024/06/Thermopile-Pyranometer–-Secondary-Standard.webp)

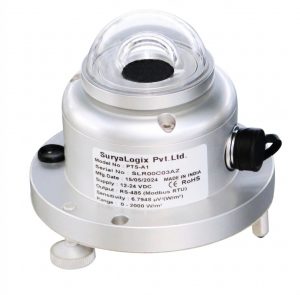

Thermopile Pyranometer– Secondary Standard
- Improved measurement accuracy .
- Used to measure the broad band of the solar radiation.
- flux density from a 180 degree field of view.
- Wide selectivity range.
- Response time < 60 sec.
